• GPU Model: NVIDIA Geforce RTX 3060 12GB

• Chip Code: GA106

• Stream Processors: 3584

• Core Clock (MHz): 1320MHz

• Memory Clock Speed(Mhz): 15000MHz

• Video Memory Capacity: 12GB

• Video Memory Type: GDDR6

• Video Memory Interface: 192Bit

• Interface Type: PCI Express 4.0 x 16

• Output Interface Type: HDMI * 1 DisplayPort * 3

• Power Connector: 8pin

• Power Consumption: 170W

• Recommended power supply ：550W or above

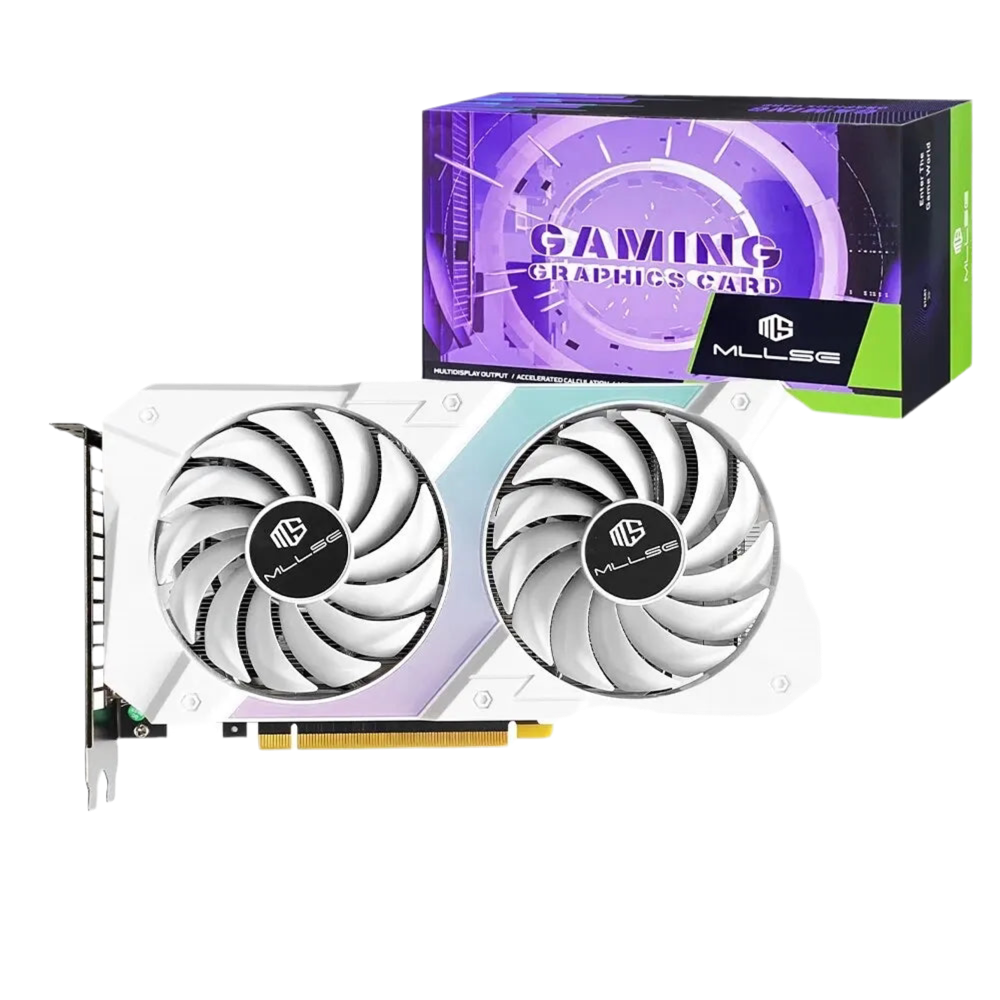

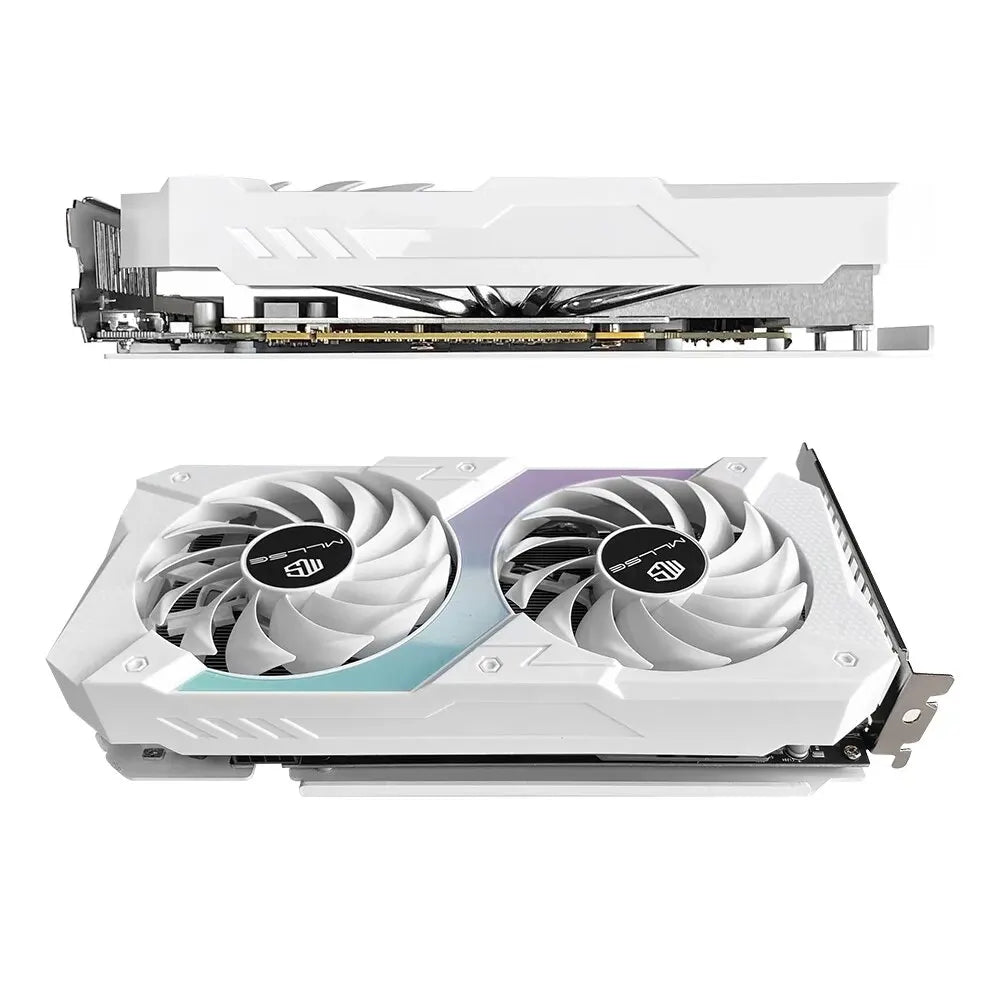

RTX 3060 12GB Parameters Dual-fan cooling system

Strong wind --- High-speed and large-size dual-fan design, double the wind to introduce airflow, and the strong wind will dissipate heat faster.

8PIN Power Interface

Harsh Materials

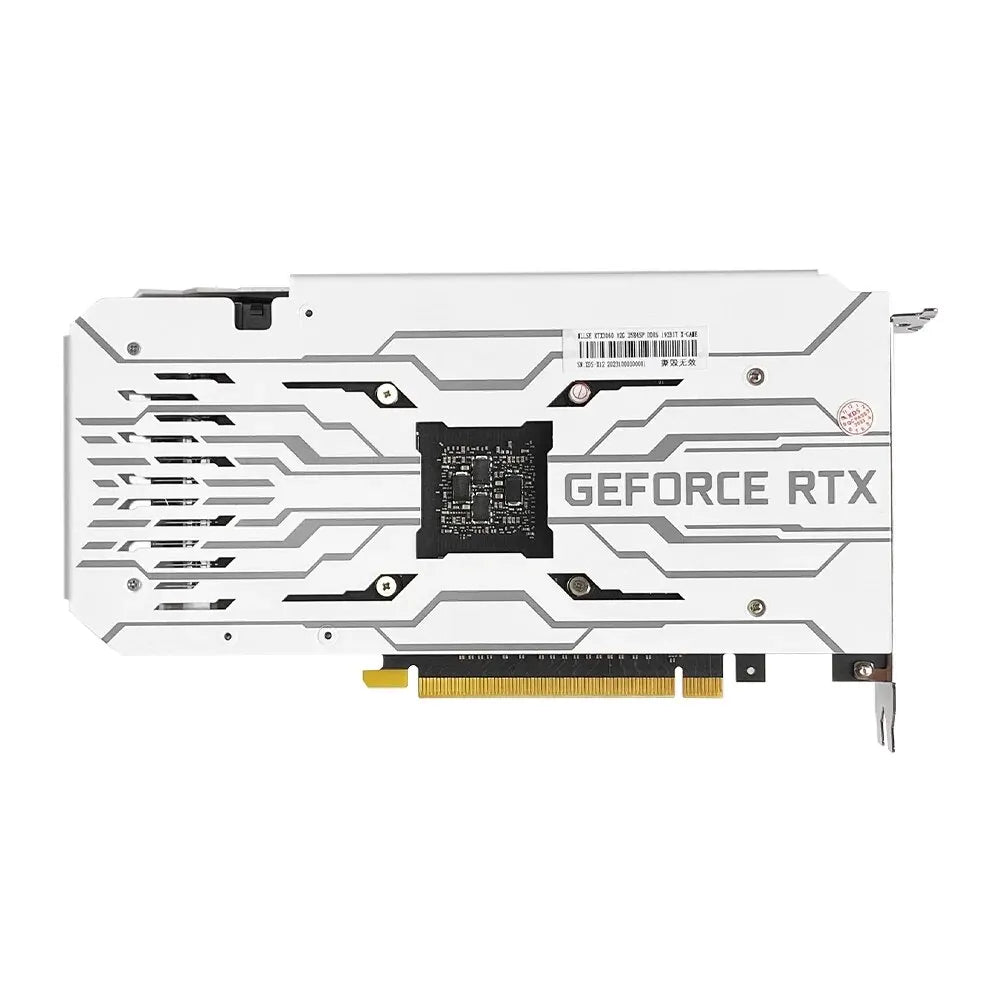

Large-area PCB board, using high-speed GDDR6 12G memory,Fine workmanship, more stable and durable. Full Size Metal Backplate

Protect the PCB --- Full-size backplane reduces graphics card bending and PCB damage. The cutout on the back allows airflow to pass through, further improving heat dissipation. Power Consumption 170W

High Performance Low Power Consumption, Being relaxed about gaming one whole day

Suggested minimum Power Supply 550W 4K 8K HD Display

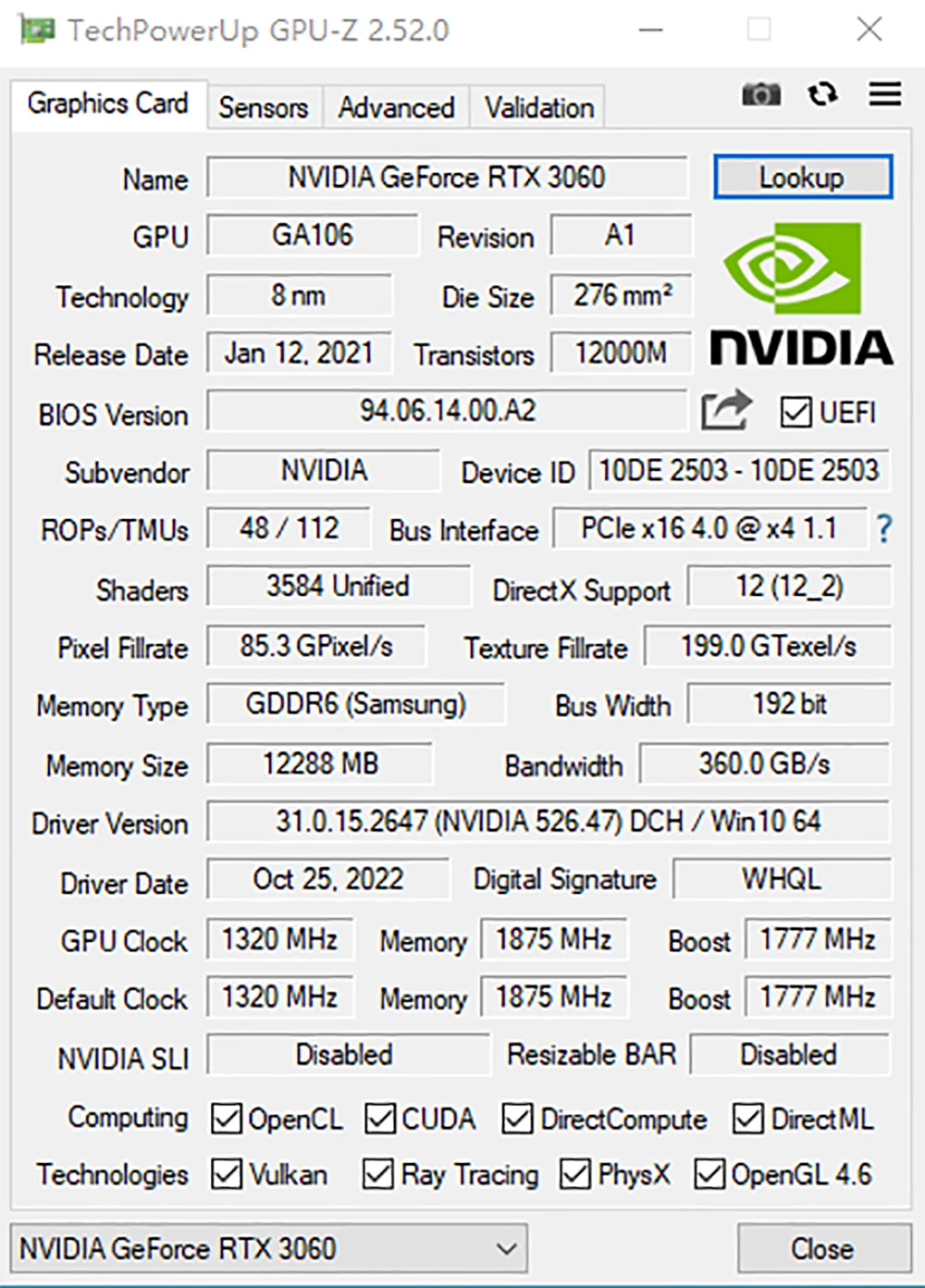

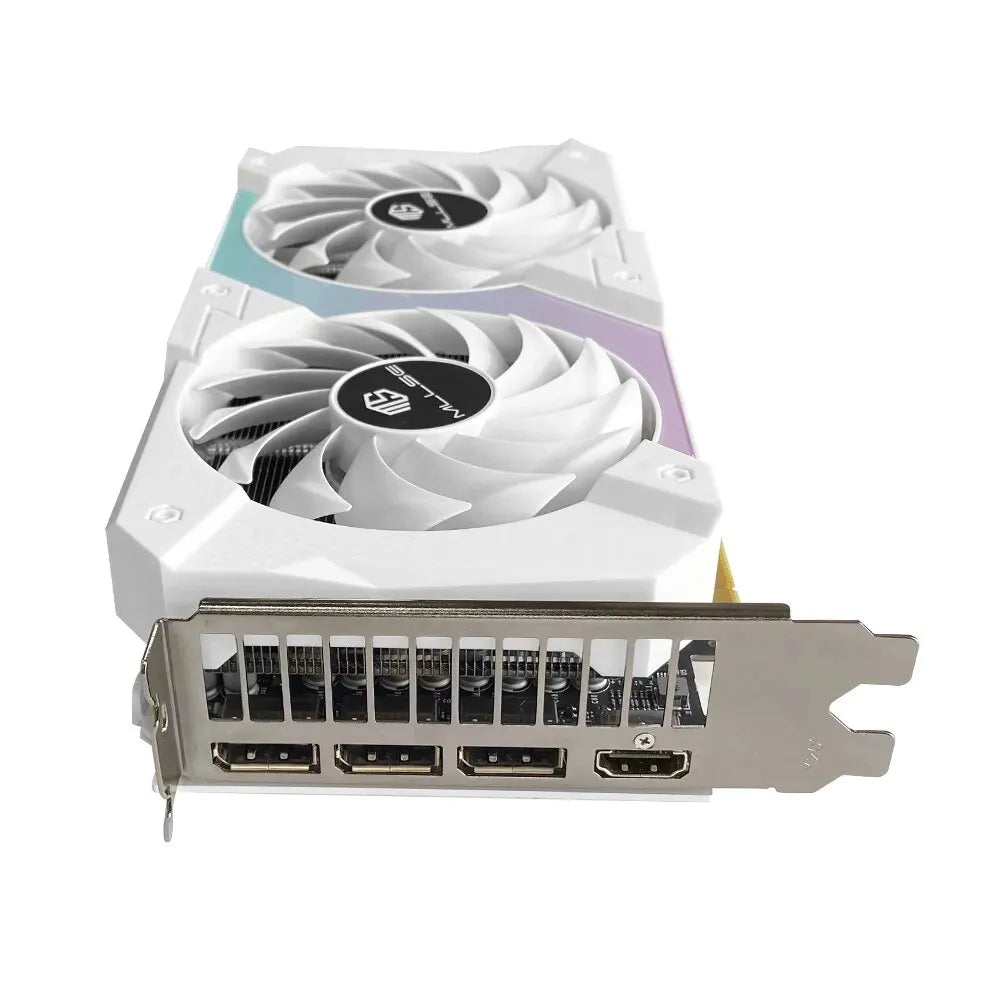

DP+HD two mainstream high-definition outputs Smooth interface and high-definition game visual experience. RTX 3060 12GB Test Chart

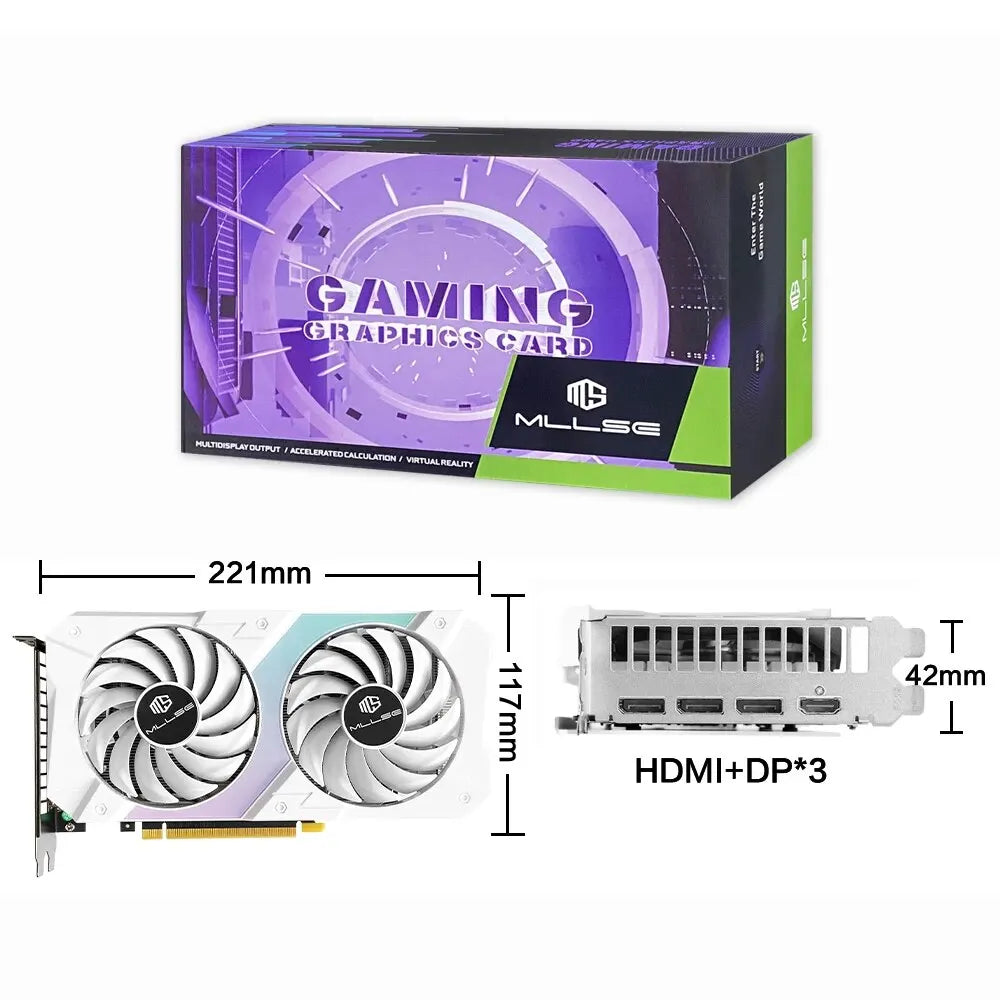

Packaging includes:

Graphics Card*1

Warranty Card*1

User Manual*1

Fix screw*2 RTX 3060 12GB Real Photo Display

Install the graphics card

1.Turn off the computer and unplug the power cord.

2.Remove the chassis cover and find the PCle slot.(A)

3. Remove the metal back plate at the expansion slot you want to insert the graphics card in.

4. Insert PCle connector (B)to PCle slot and make sure that it is firmly inserted

5. Fix the graphics card to the expansion slot with screw (C)

6. Connect the corresponding PCle power connector (D) to the independent power supply inter face (E) on graphics card

Notice:

1. Under normal circumstances, the normal temperature of the graphics card should be between "30-85 ℃"

2. Even if the ambient temperature is too high in summer, the normal temperature is between "50-85°C"

3. Play some large 3D games and watch some high-definition videos, the graphics card temperature should be around 90℃

4. In fact, as long as the temperature of the graphics card does not exceed 95°C, there is generally no problem.

If the temperature exceeds 95°C, the graphics card will automatically reduce the frequency, so there is no need to worry too much.

Questions and Answers:

Q: Why do golden fingers have scratches

A: Because graphics cards undergo multiple tests before leaving the factory, this is a normal phenomenon and there is no need to worry.

Q: Where can I download the driver?

A: Go to the corresponding official website to download the driver
